Ever since the invention of the wheel, if there has been "go" there has been a need for "whoa." As the level of technology of human transportation has increased, the mechanical devices used to slow down and stop vehicles has also become more complex. In this report I will discuss the history of vehicular braking technology and possible future developments.
Before there was a "horse-less carriage," wagons, and other animal drawn vehicles relied on the animal’s power to both accelerate and decelerate the vehicle. Eventually there was the development of supplemental braking systems consisting of a hand lever to push a wooden friction pad directly against the metal tread of the wheels. In wet conditions these crude brakes would lose any effectiveness.
The early years of automotive development were an interesting time for the designing engineers, "a period of innovation when there was no established practice and virtually all ideas were new ones and worth trying. Quite rapidly, however, the design of many components stabilized in concept and so it was with brakes; the majority of vehicles soon adopted drum brakes, each consisting of two shoes which could be expanded inside a drum."
In this chaotic era is the first record of the disk brake. Dr. F.W. Lanchester patented a design for a disk brake in 1902 in England. It was incorporated into the Lanchester car produced between 1906 through 1914. These early disk brakes were not as effective at stopping as the contemporary drum brakes of that time and were soon forgotten. Another important development occurred in the 1920’s when drum brakes were used at all four wheels instead of a single brake to halt only the back axle and wheels such as on the Ford model T. The disk brake was again utilized during World War II in the landing gear of aircraft. The aircraft disk brake system was adapted for use in automotive applications, first in racing in 1952, then in production automobiles in 1956. United States auto manufacturers did not start to incorporate disk brakes in lower priced non-high-performance cars until the late 1960’s.
ADVANTAGES OF DISC BRAKES OVER DRUM BRAKES
As with almost any artifact of technology, drum brakes and disk brakes both have advantages and disadvantages. Drum brakes still have the edge in cheaper cost and lower complexity. This is why most cars built today use disk brakes in front but drum brakes in the back wheels, four wheel disks being an extra cost option or shouted as a high performance feature. Since the weight shift of a decelerating car puts most of the load on the front wheels, the usage of disk brakes on only the front wheels is accepted manufacturing practice.
Drum brakes had another advantage compared to early disk brake systems. The geometry of the brake shoes inside the drums can be designed for a mechanical self-boosting action. The rotation of the brake drum will push a leading shoe brake pad into pressing harder against the drum. Early disk brake systems required an outside mechanical brake booster such as a vacuum assist or hydraulic pump to generate the pressure for primitive friction materials to apply the necessary braking force.All friction braking technology uses the process of converting the kinetic energy of a vehicle’s forward motion into thermal energy: heat. The enemy of all braking systems is excessive heat. Drums are inferior to disks in dissipating excessive heat:
"The common automotive drum brake consists essentially of two shoes which may be expanded against the inner cylindrical surface of a drum. The greater part of heat generated when a brake is applied has to pass through the drum to its outer surface in order to be dissipated to atmosphere, and at the same time (the drum is) subject to quite severe stresses due to the distortion induced by the opposed shoes acting inside the open ended drum.

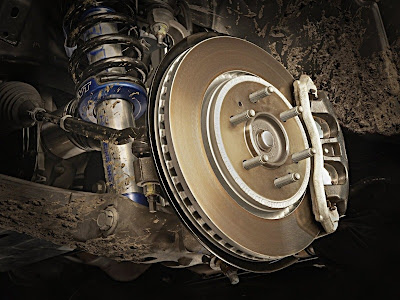

The conventional disk brake, on the other hand, consists essentially of a flat disk on either side of which are friction pads; equal and opposite forces may be applied to these pads to press their working surfaces into contact with the braking path of the disks. The heat produced by the conversion of energy is dissipated directly from the surfaces at which it is generated and the deflection of the braking path of the disk is very small so that the stressing of the material is not so severe as with the drum."
The result of overheated brakes is brake fade...the same amount of force at the pedal no longer provides the same amount of stopping power. The high heat decreases the relative coefficient of friction between the friction material and the drum or disk. Drum brakes also suffer another setback when overheating: The inside radii of the drum expands, the brake shoe outside radii no longer matches, and the actual contact surface is decreased.
Another advantage of disk brakes over drum brakes is that of weight. There are two different areas where minimizing weight is important. The first is unsprung weight. This is the total amount of weight of all the moving components of a car between the road and the suspension mounting points on the car’s frame.
Auto designs have gone to such lengths to reduce unsprung weight that some, such as the E-type Jaguar, moved the rear brakes inboard, next to the differential, connected to the drive shafts instead of on the rear wheel hubs. The second "weighty" factor is more of an issue on motorcycles: gyroscopic weight. The heavier the wheel unit, the more gyroscopic resistance to changing direction. Thus the bike’s steering would be higher effort with heavier drum brakes than with lighter disks. Modern race car disk brakes have hollow internal vents, cross drilling and other weight saving and cooling features.
Most early brake drums and disks were made out of cast iron. Current OEM motorcycle disk brakes are usually stainless steel for corrosion resistance, but after-market racing component brake disks are still made from cast iron for the improved friction qualities. Other exotic materials have been used in racing applications. Carbon fiber composite disks gripped by carbon fiber pads were common in formula one motorcycles and cars in the early 1990’s, but were outlawed by the respective racing sanctioning organizations due to sometimes spectacular failure. The carbon/carbon brakes also only worked properly at the very high temperatures of racing conditions and would not get hot enough to work in street applications.
A recent Ducati concept show bike uses brake disks of silesium, developed by the Russian aerospace industry(3), which claim to have the friction coefficient of cast iron with the light weight of carbon fiber.
Another area of development of the disk brake is the architecture of the brake caliper. Early designs had a rigidly mounted caliper gripping with opposed hydraulic pistons pushing the brake pads against a disk mounted securely to the wheel hub. Later developments included a single piston caliper floating on slider pins. This system had improved, more even pad wear. Most modern automobiles and my 1982 Kawasaki motorcycle uses this type caliper. Current design paradigm for motorcycle brakes have up to six pistons, opposed to grip both sides of a thin, large radius disk that is "floating" on pins to provide a small amount of lateral movement; two disks per front wheel.
Improvements in control have been made available with the application of Anti-Lock Brake technology. Wheel sensors convey rotation speed of each wheel to a computer that senses when any of them are locked up or in a skid, and modulates individual wheel brake hydraulic pressure to avoid wheel skidding and loss of vehicular control.
The use of exotic materials for additional weight savings would be likely for the future of motor vehicle braking. Disks mounted to the wheel’s rim gripped by an internally located caliper is not necessarily a new design (Porsche, 1963) (4) but could be a futuristic looking option for motorcycle wheels. Electric vehicles of the future will likely utilize regenerative braking, the electric motors become generators to convert kinetic energy back to electricity to recharge the batteries. As production vehicles become increasingly quicker, the need for "whoa" will always accompany the "go."
Many trucks and buses are equipped with air actuated sliding caliper disk brakes.The high contact forces are transmitted mechanically via needle mounted actuating device Depending on size the actuating pressure is transmitted evenly to the brake pads via one or two plungers.The easy action, fully sealed guides between the axially moving sliding caliper and fixed brake anchor plate are maintenance free. Integrated automatic adjustment with wear display. There are no brake shafts, external levers or cylinder brackets, as the brake cylinders are directly attached.The high efficiency of 95% is achieved by only a few moving parts and low friction bearings Asbestos free brake pads 19 to 23 mm thick, depending on version extremely heat resistant brake disks (34 to 45 mm) made of special gray cast iron with internal ventilation. The brake disks are 330 to 432 mm in diameter and permissible wear of 6 to 10 mm allowed; depending on version .The service and parking brakes use the same actuating unit and differ only in the shape of the brake cylinder.
